Philips
SimplyGo Mini Portable Oxygen Concentrator with Battery
Each
UPC: 1113604
SKU Code: Phi1113604

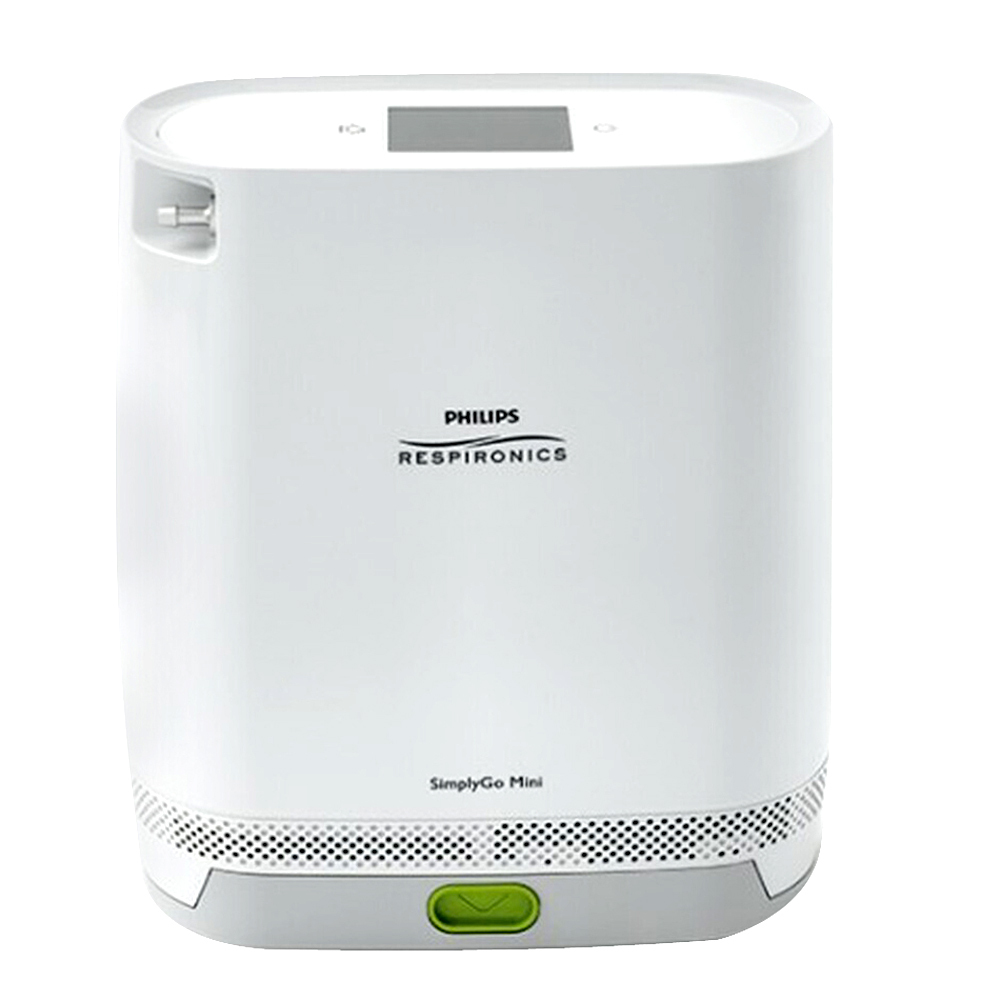

Philips SimplyGo Mini Portable Oxygen Concentrator
Sold as Each
The smallest and lightest POC ever developed by Philips Respironics, SimplyGo Mini is built for todays patients. It is designed and rigorously tested to be reliable and durable in real-world environments, undergoing the same testing regimen as its counterpart, the proven SimplyGo Mini is built for todays patients with busy and mobile lifestyles.
Features:
- Lightweight and Intuitive - offers an attractive, sleek and light weight design, easy-to-remove external battery and intuitive easy-to-read user interface, Philips SimplyGo Mini is the smallest and lightest POC ever developed by Philips Respironics
- Intuitive User Interface - color LCD Touchscreen Interface is smooth to the touch and highly responsive, it provides immediate access to the SimplyGo Minis 5 Pulse Dose settings and device tools for a personalized therapy experience
- Battery Options: (1) System with standard battery - includes SimplyGo Mini portable oxygen concentrator, carrying case, one standard rechargeable lithium ion battery, DC and AC power cords, accessory bag, and user manual. Standard battery for battery duration up to 4.5 hours (pulse setting of 2 at 20 BPM), resulting in total weight of 5 lbs. (2) System with extended battery - includes SimplyGo Mini portable oxygen concentrator, carrying case, one extended rechargeable lithium ion battery, DC and AC power cords, accessory bag, and user manual. Extended battery for battery duration up to 9 hours (pulse setting of 2 at 20 BPM), resulting in a total weight of 6 lbs
- Pulse Dose Oxygen Therapy - delivers oxygen in pulses during inhalation. With 5 levels of pulse therapy settings, the Simplygo Mini produces up to 1L/minute on the maximum setting of 5, the lowest it provides is 220 ml/min on the setting of 1 and oxygen purity runs between 87% and 96%, with an average of around 93%
- Five pulse dose Flow settings and pulse volumes: Setting 1: 11ml, 220 ml/min, Setting 2: 22ml, 440 ml/min, Setting 3: 33ml, 660 ml/min, Setting 4: 44ml, 880 ml/min and Setting 5: 50ml, 1000 ml/min. Note: Nominal pulse volume at 20 BPM, Maximum minute volume output
- Discreet Design - SimplyGo Mini carry case is like a satchel with a shoulder strap. It features discreet colouring and design, similar to a messenger bag in appearance. The padded carry case wraps tightly around the SimplyGo Mini device to give maximum protection, with the top exposed so that the user can access the touchscreen interface at any given time
- SimplyGo Mini has alarms to alert the user of issues such as low battery levels, low oxygen, absence of flow, technical errors
Inclusions:
- 1 x SimplyGo Mini Portable Oxygen Concentrator
- 1 x Carrying Case
- 1 x Standard Rechargeable Lithium Ion Battery
- 1 x DC Power Cord
- 1 x AC Power Cord
- 1 x Accessories Bag
- 1 x User Manual
Please note:
- All patients needing home oxygen in Australia must have a Doctors prescription issued to them for treatment
- This includes a full diagnosis and physiological assessment, including blood gases to ensure oxygen therapy is the right course of action for each situation
Warranty:
- SimplyGo Device: 3 Years
- Battery: 3 Months
- Sieve Bed: 1 Year
Type | Value |
---|---|
Oxygen Concentrations | At least 87% at all settings (maximum of 96%)1Based on atmospheric pressure of 14.7 psia (101 kPa) at 70° F (21° C) |
Outlet Pressure | 20 psig |
Flow settings and pulse volumes |
Setting Nom. pulse vol. at 20 BPM Max. minute vol. output 1 11ml 220 ml/min 2 22ml 440 ml/min 3 33ml 660 ml/min 4 44ml 880 ml/min 5 50ml 1,000 ml/min |
Sound Level | 43 dBA typical at settings 2 and 20 BPM; 46 dBA typical at settings 5 and 20 BPM |
Physical Characteristics | |
Size | With standard battery: 9.4 in. x 8.3 in. x 3.6 in. (23.9 cm x 21.1 cm x 9.1 cm)With extended battery: 10.2 in x 8.3 in x 2.6 in (25.9 cm x 21.1 cm x 9.1 cm) |
Weight | 5 lbs. (2.3 kg) with standard battery installed6 lbs. (2.7 kg) with extended battery installed |
User Interface | Touch screen LCD |
Operating Conditions | |
Operating Temperature | 41° F to 95° F (5° C to 35° C) |
Relative Humidity | 15% to 93% |
Altitude | Up to 10,000 ft. (3,048 m) |
AC Power | |
Input | 100 to 240 VAC, 50/60 Hz |
Output | 19 VDC, 6.3 A max |
Power Consumption | 120 W while charging |
DC Power | |
Input | 12 - 16 VDC |
Output | 19 +/- 5% VDC, 6.3 A |
Audible Alarm | |
Sound Level | 56 dBA or greater when measured at 1 m |
Alarm Type | No breath, low oxygen concentration, high breath rate, technical fault, low battery, no flow, depleted battery, external power failure |
Battery | |
Chemistry | Lithium ion 14.4 VDC (nominal) |
Battery Options | Standard battery, Extended battery (equals two standard batteries) |
Dimensions | Standard battery: 7.9 in. x 3.6 in. x 1.0 in. (20.1 cm x 9.1 cm x 2.5 cm)Extended battery: 7.9 in. x 3.6 in. x 1.9 in. (20.1 cm x 9.1 cm x 4.8 cm) |
Weight | Standard battery: 1.1 lbs. (0.50 kg)Extended battery 2.1 lbs. (0.95 kg) |
Watt-hour Rating per Standard Battery | 3.4 Ah x 3.6V x 8 cells = 97.9 Wh per standard battery |
Charge Time | Standard battery: 4 hours maximum and Extended battery: 8 hours maximum |
Typical Battery Duration on Pulse Setting 2, 20 BPM | |
Standard battery | Up to 4.5 hours |
Extended battery | Up to 9 hours |
Warranty Duration | 3 Years |
SKU | Phi1113604 |
Barcode # | 1113604 |
Brand | Philips |
Unit Of Measure | Each |
