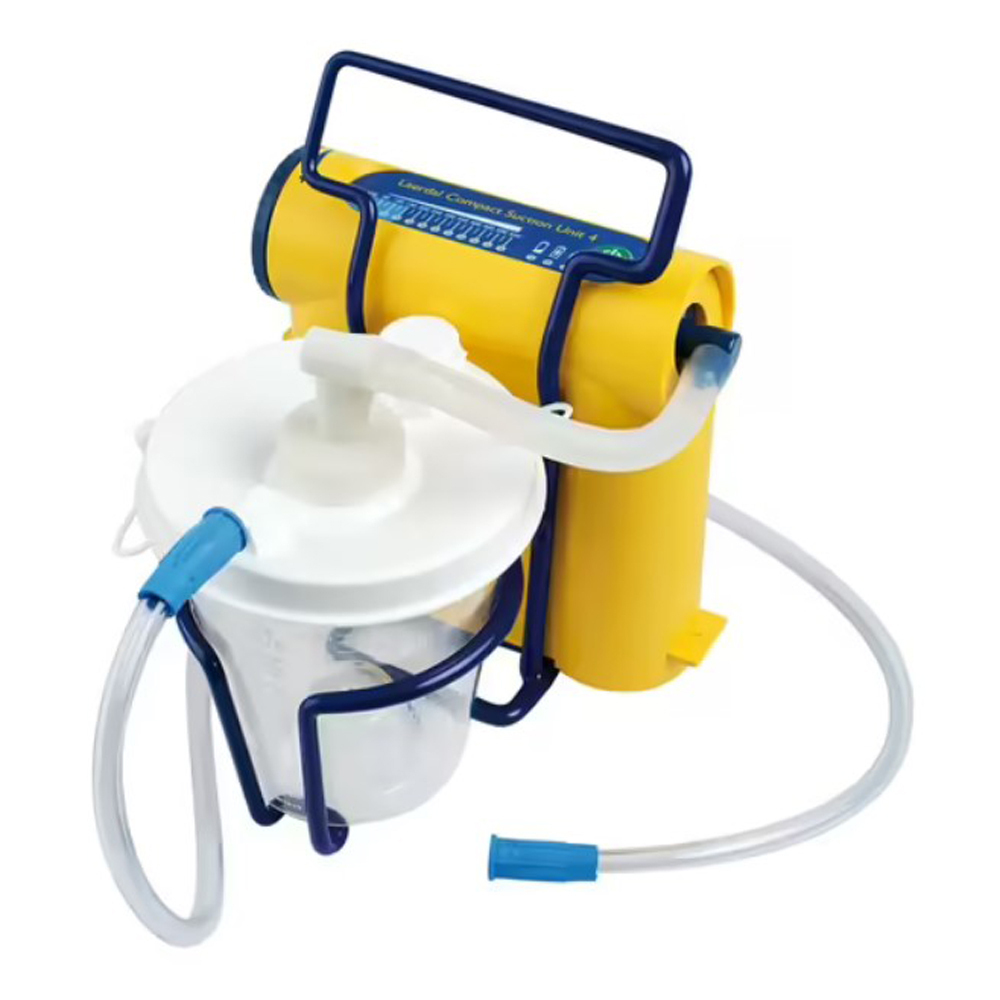

Compact Suction Unit 4 (LCSU 4) - 800ml

Sold as Each

Laerdal's LCSU 4 suction unit combines rugged design with lightweight portability, an essential tool for every first responder, with its unique click-in-place canister, no vacuum tube between the canister and the suction pump is necessary - just click-in-place and go. A clean and efficient solution, a used canister can be replaced quickly with a new one when suctioning is completed. The canister is sealed, with an internal filter. The filter automatically stops suction/flow when the canister is full or the filter becomes saturated if the unit tips onto its side during use. Once wet the filter forms a gel which prevents ingress of fluid into the pump.

Features:

• Small & Lightweight
• Unique Click-in-Place Canister
• The Canister is disposable, it can not be cleaned
• The Canister has an internal filter in the lid and mechanical shutoff valve that protects against contamination and overflow
• To increase filtration efficiency the Vacuum Tube may be replaced with a High Efficiency Filter Kit
• The Kit is used in situations where there is a high risk of cross-contamination
• Easy to change Canister capacity - each version can easily be converted to the other canister option by ordering additional parts
• CE marked - This product is in compliance with the essential requirements of Council Directive 93/42/EEC Medical Device Directive, as amended by Council Directive 2007/47/EC, class IIa
• One-hand-grip design
• Internal integrated filter systems for all canisters
• HEPA rated bacterial filter
• Latex free
• Big vacuum regulator dial, with "clicking sound"
• LED display for use day or night
• Battery level indicator
• Children vacuum range area (marked in blue) on the control panel
• Arrows pointing the vacuum directions
• Wire Stand for stability
• High density carry bags
• Rechargeable Battery, NiMH 12 volt 1.6 Ah.
• Battery run time: Approximately 45 minutes (free flow)
• AC/DC Adapter Charger (100-240 V)
• External Battery Charger
• 12V DC Power-cord for connection to vehicle connection
• Multi language directions for Use (19 languages)

Package Includes:

• LCSU 4 Main Unit
• 800 ml Disposable Canister
• Patient Tube 1.8 m (6')
• Vacuum Tube
• AC/DC Adapter charger
• Battery
• User Guide
• Carry Bag (for 800 ml version)
• Wire Stand
