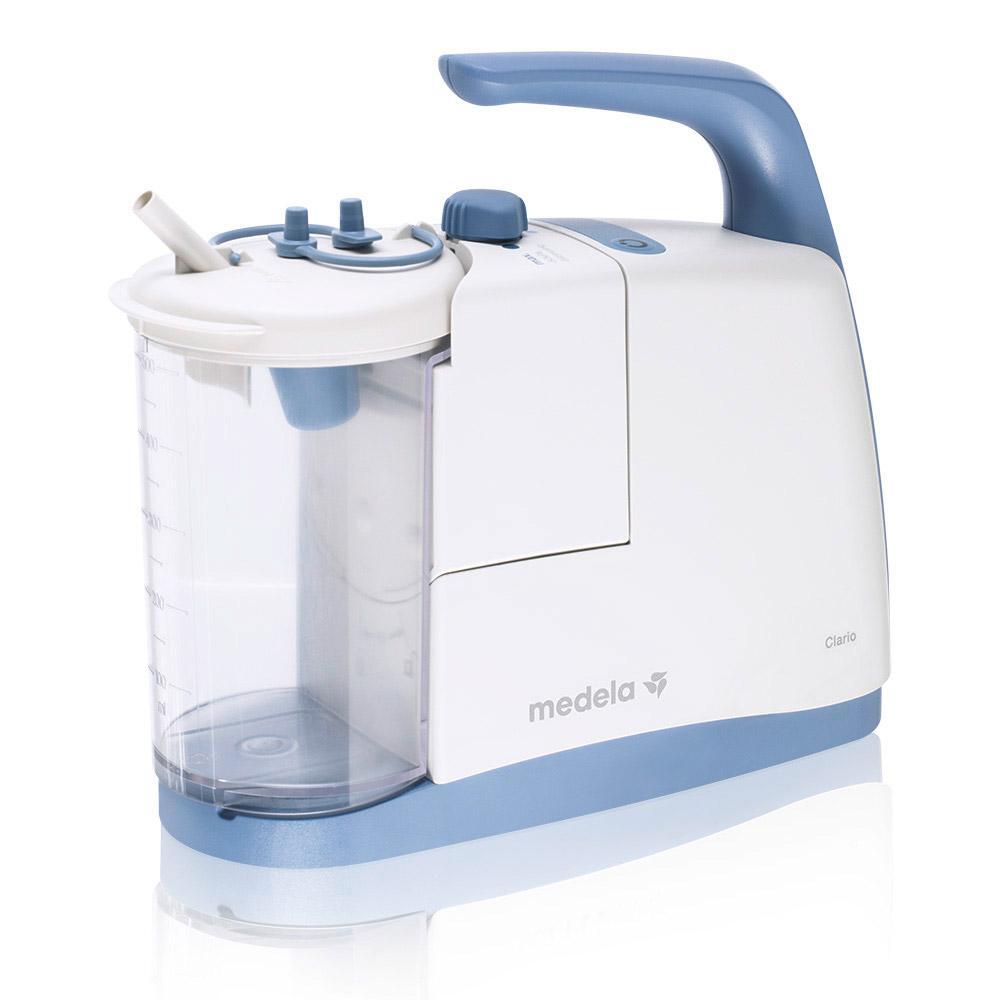

Medela Clario Deluxe Airway Suction Pump Aspirator

Clario Deluxe suction pump from Medela is a high quality suction pump that combines easy handling and cleaning with safety features to ensure optimal operation. This suction pump is indicated to clear the airways either through the nose, mouth or tracheostomy tube. The connecting tubing delivered with the device must always be connected to the catheter prescribed by your physician.

Features:

  • Quick relief for quiet tracheostomy suctioning
  • Practical and easy to use
  • Pre-determined vacuum settings enable you to select a setting, and use the pump immediately, for quick relief
    • min = -135 mmHg / -18 kPa
    • med = -270 mmHg / -36 kPa
    • max = -600 mmHg / - 80 kPa
  • No need to reset vacuum levels, just set them once, and the vacuum is ready when you need it
  • Simply plug the canister in, no additional tubing or filters are required
  • Ideal for use out and about
  • Lightweight and portable design allows the pump to be easily mobilised with the user
  • Battery-powered versions offer over 50 minutes of operation per charge
  • The quietness of the pump makes suctioning on the move and in public more discreet
  • Threefold hygienic design keeps fluids from entering the pump unit
  • Rounded edges and one-click connections make the pump easy to clean
  • The Clario's practical design consists of three main parts for easy, uncomplicated assembly
  • The Clario's weight – just 2kg – gives the user more freedom
  • The Clario and its components can be taken everywhere discreetly and conveniently in the optional carrying bag
  • Membrane system ensures no overflow

Inclusions:

  • Clario - AC/DC version
  • Softcase Carry Bag
  • Extra Canister
  • Main Power Adapter



Optional Extras:

  • 074.0017  Car Charger



Type Value

Max. vacuum [kPa/mmHg]:

  • Measured at 0 m, atmospheric pressure: 1013.25 hPa
  • Please note: vacuum levels may vary depending on location (meters above sea level, atmospheric pressure and temperature).

Tolerance:

  • Min.   –18/–135        ± 15%
  • Med.   –36/–270       ± 15%
  • Max.   –80/–600       – 15%
Flow L/min 15 l/min. ± 10%
Dimensions mm 223 x 255 x 95
Weight kg AC 1.7 AC/DC 2.0
Drive unit Membrane
Power supply 100-240V, 50-60 Hz
Power consumption V 12 V, 3.4A
Noise level [dB(A)]; measured in Medela acoustic room at 1 m distance 64.3
Protection against electric shock Type BF
Medical Device Classification - According to 93/42/EEC Class IIa
Protection against electric shock Class II Equipment
Ingress Protection IP21
Battery NiMH
Operation from battery at full charge >50 minutes
Charging time of battery 5 hours
Overflow protection Threefold hygienic design: Floater in canister prevents overflow Safety ChamberMembrane system No overflow can occur into the pump
Warranty years 2 Years; Battery 6 months
Operating temperature, relative humidity, pressure 5 to 40 °C, 15-93 %, 70-106 kPa
Transport/storage temperature, relative humidity, pressure -20 to +50 °C, 15-93 %, 70-106 kPa
Made in Switzerland
SKU Med014-0250
Barcode # 014-0250
Brand Medela
Unit Of Measure Each
