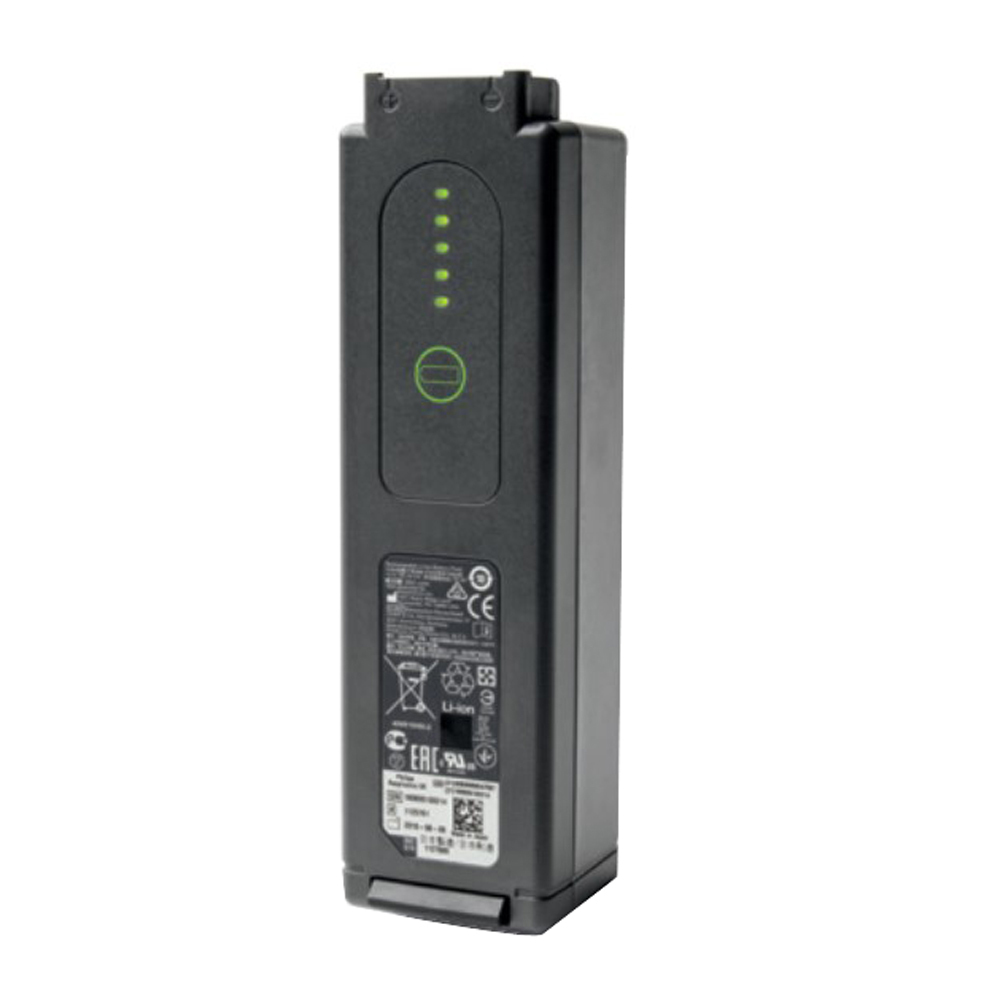

Philips Trilogy Evo Detachable Battery

Sold as Each

Trilogy Evo Detachable Battery can power the device when disconnected from AC or external battery power. The battery includes an LED charge meter. To view the percentage of charge, remove the battery and press the button on the battery. Green lights appear to indicate how much charge remains in the battery.

Features:

  • Designed for Trilogy Evo Ventilator
  • A fully-charged, detachable battery will supply at least 7.5 hours of usage under normal usage conditions
  • Hot-swappable on the go

Suggested Use:

  • To remove the detachable battery: open the detachable battery access door. Lift the battery handle and pull the battery to remove it from the battery bay.
  • To replace the detachable battery: open the detachable battery access door. Slide the battery into the battery bay until you hear a click.
  • Verify the detachable battery is installed correctly. You should see the detachable battery icon appear in the Battery Power Meter on the Status Bar.

Warning:

  • Do not expose the device or detachable battery to temperatures above 60? C (140? F) during use or above 70?C (158?F) during storage. This will reduce battery life and may increase the risk of fire or damage the battery.
  • Periodically inspect electrical cords, cables, and the detachable battery pack for damage or signs of wear. Discontinue use and replace if damaged.
Type Value
Voltage 14.4 to 14.8 VDC
Rated Capacity 80 Wh minimum
Chemistry Type Lithium-Ion
Charge Operating Temperature 0° C to 45° C
Storage Temperature -20° C to 60° C
Relative Humidity (operating and storage) 5 to 93% (non-condensing)
SKU Phi1127889
Barcode # 1127889
Brand Philips
Unit Of Measure Each
